  • Hook strip Flat Screen

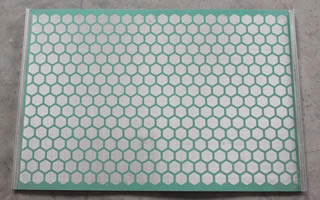

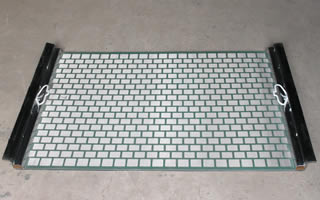

    Hook strip flat screen are the series applied most widely at present. These products can be fit for all kinds of shale shakers that use the hook strip flat screen. This screen panel is constructed with two or three stainless steel layers bonded to a steel support plank. Accessary rubber plugs may be inserted to the rips or tears of the screen. By doing this, we can cut down time and the production cost. We can supply hook strip flat screens with mesh sizes ranging from 12 to 275.

    Screen Model

    Range of Mesh

    Dimension (Width x Length)

    HYP-1

    20-325

    903×1155mm

    HYP-2

    20-325

    1212×1141mm

    HYP-3

    20-325

    697×1050mm

    HYP-4

    20-325

    697×1053mm

    HYP-5

    20-325

    697×846mm

    HYP-6

    20-325

    915×1150mm

    HYP-7

    20-325

    720×1220mm

    HYP-8

    20-250

    700×1165mm

    HYP-9

    20-250

    1186×1280mm
